Mainly used for filter process with shortened filter cycle, high solid rate and improved filtering effects, as the latest and the most practical new type filter plate.
Bright filter plates including: plate and frame filter plate, recessed plate and high pressure polypropylene membrane plate, glass fiber polypropylene filter plate, rubber membrane filter plate, cast iron filter plate and stainless steel filter press, etc. The feeding modes can be middle feeding, corner feeding and upper middle feeding, etc. Customers can select filter plates in different materials and design according to their requirement. |
 |
 The application of membrane filtration technology has improved filtering effects significantly. The final dewatered cake is a result of mechanical squeezing by the membrane. Bright high pressure PP membrane plate can achieve squeezing pressure up to 4.0 MPa. The high pressure PP membrane plate is the latest and the most practical new type filter plate.
It has three major advantages than conventional recessed chamber filtration.
●Reduced filtration Cycle Times ●Increased Cake Dry Solids ●Improved Cake Wash Capabilit |
 |
 |
 |
 |
 |

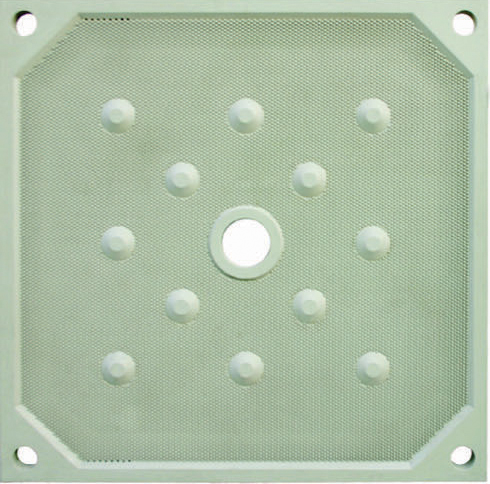

| 2000 high pressure PP membrane filter plate |

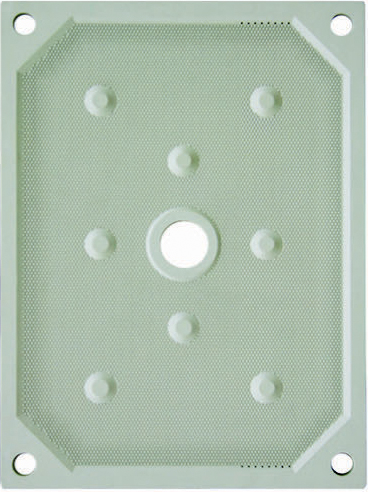

1500×2000 high pressure PP membrane filter plate |

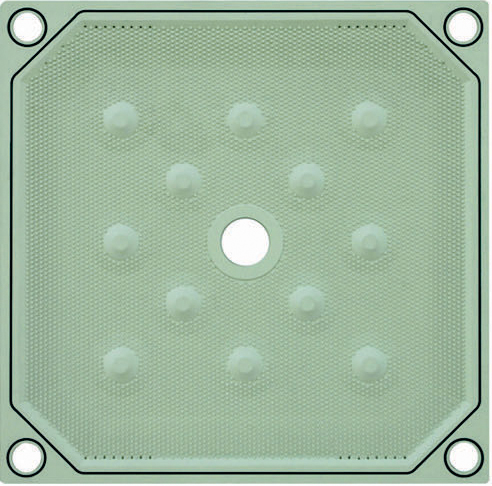

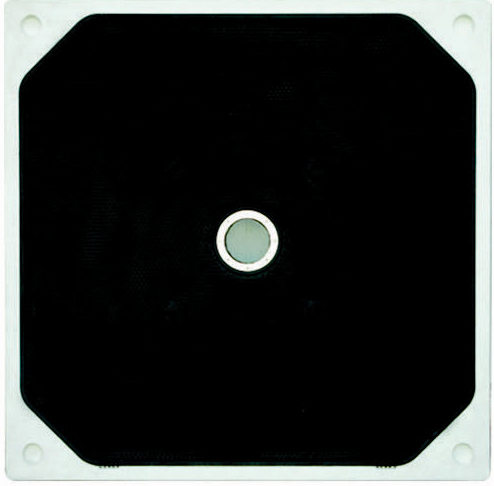

Center feeding high pressure PP membrane plate |

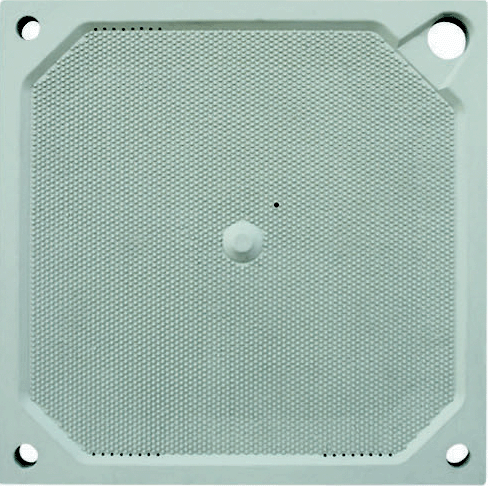

Angle feeding high pressure pp membrane plate |
PP Membrane structure | |
 |
|
Model |
Plate Thickness |
Cake thickness |
Chamber |
Filtration Area |
Filtration Volume |
Weight |
|
(mm) |
(mm) |
(mm) |
(㎡) |
(㎡) |
(㎏) |
|
630×630 |
60 |
30 |
15 |
0.6 |
0.009 |
25 |
|
800×800 |
65 |
30 |
15 |
1 |
0.015 |
30 |
|
870×870 |
65 |
30 |
15 |
1.18 |
0.017 |
29 |
|
1000×1000 |
72 |
38 |
19 |
1.62 |
0.03 |
40 |
|
1200×1200 |
75 |
40 |
20 |
2.33 |
0.046 |
63 |
|
1250×1250 |
78 |
40 |
20 |
2.6 |
0.052 |
65.5 |
|
1500×1500 |
85 |
40 |
20 |
3.8 |
0.076 |
95 |
|
1600×1600 |
85 |
40 |
20 |
4.262 |
0.085 |
111 |
|
1500×2000 |
90 |
40 |
20 |
5.06 |
0.1 |
150 |
|
2000×2000 |
95 |
40 |
20 |
6.92 |
0.138 |
198 | |
| Notes: The above technical data of filter plates are changeable; please feel free to ask if you have different requirements. |
 |
 |
 |
 |
 |

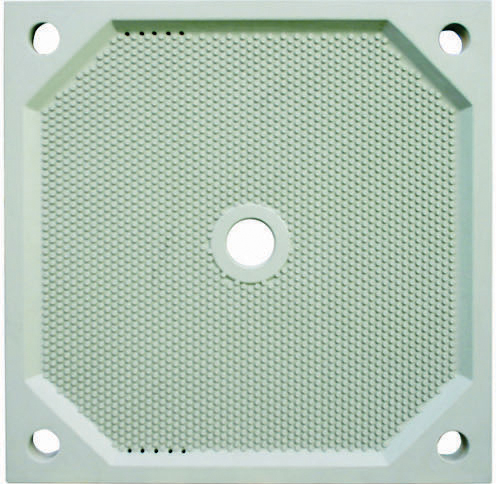

| 2000 PP filter plate |
1500×2000 PP filter plate |

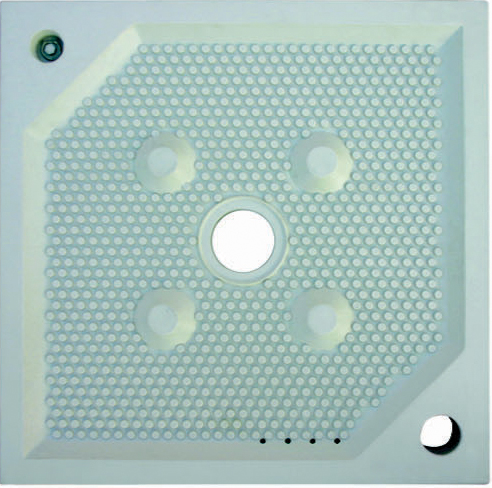

Angle feeding PP filter plate |

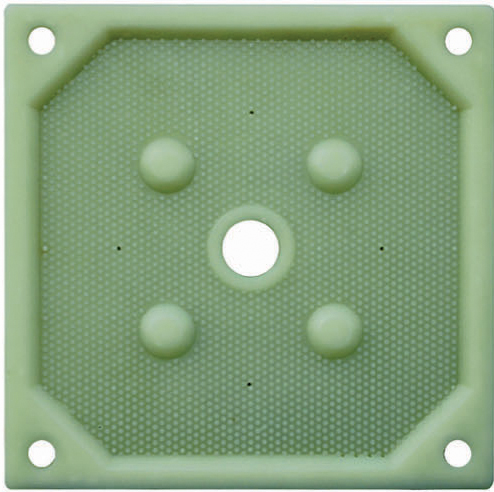

800 PP filter plate |
 |
 |
 |
 |
| 500 PP filter plate |
High temperature filter plate |
Gasket filter plate |
Rubber membrane filter plate | |
 |
|
Model |
Plate Thickness |
Cake thickness |
Chamber |
Filtration Area |
Filtration Volume |
Weight |
|
(mm) |
(mm) |
(mm) |
(㎡) |
(㎡) |
(㎏) |
|
500×500 |
52 |
30 |
15 |
0.32 |
0.0048 |
8 |
|
630×630 |
55 |
30 |
15 |
0.6 |
0.009 |
18 |
|
800×800 |
60 |
30 |
15 |
1 |
0.015 |
25 |
|
870×870 |
60 |
30 |
15 |
1.18 |
0.017 |
29 |
|
1000×1000 |
70 |
40 |
20 |
1.62 |
0.032 |
35 |
|
1200×1200 |
70 |
40 |
20 |
2.33 |
0.046 |
58 |
|
1250×1250 |
74 |
40 |
20 |
2.6 |
0.052 |
60 |
|
1500×1500 |
80 |
40 |
20 |
3.8 |
0.076 |
95 |
|
1600×1600 |
80 |
40 |
20 |
4.262 |
0.085 |
103 |
|
1500×2000 |
80 |
40 |
20 |
5.06 |
0.1 |
128 |
|
2000×2000 |
85 |
40 |
20 |
6.92 |
0.138 |
182 | |
| Notes: The above technical data of filter plates are changeable; please feel free to ask if you have different requirements. |
| |
